528 CHIP COB LED Strip

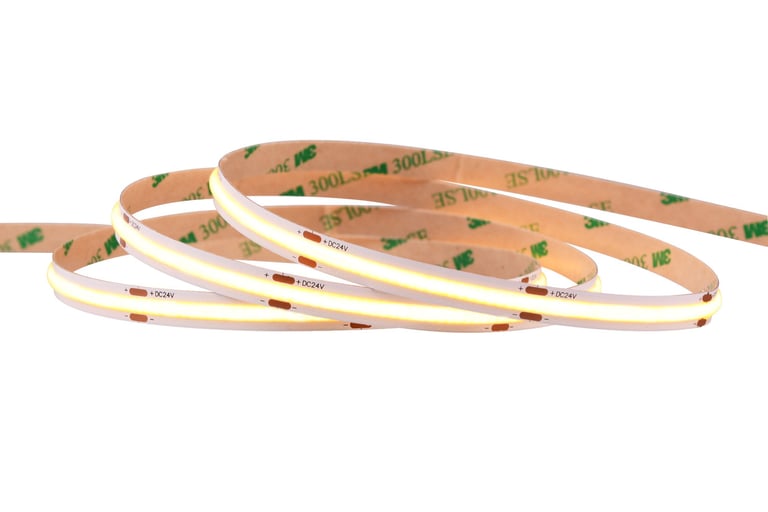

10mm COB LED STRIP

Features

• LED Qty 528pcs/meter

• Color Temperature 6500K/4000K/3000K/2700K

• Lumen 1260-1550Lm/m

• Ra ＞90

• Work Voltage 12V/24V

• Power 14W/M

• Cutting Unit 22.7mm(12V); 45.5mm(24V)

• PCB Size 5000*10mm 2oz

• IP Raiting IP20/IP45/WP/TWPJ

• Adhesive Tape 3M 9495LE 300MP

• Package Inner box: 25rolls 125m 34*20*22cm; 2.8kg

  Outer box: 4 inner boxes 500m 42*35*46cm/11.8kg

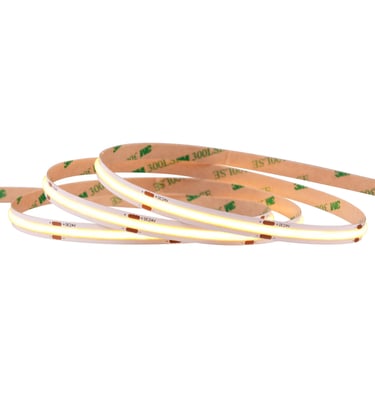

8mm COB LED STRIP (Free cutting)

Features

• LED Qty 528pcs/meter

• Color Temperature 6500K/4000K/3000K/2700K

• Lumen 12V: 1050-1250Lm/m; 24V: 1000-1100Lm/m

• Ra ＞90

• Work Voltage 12V/24V

• Power 12W/M

• Cutting Unit Free cutting

• PCB Size 5000*8mm 2oz

• IP Raiting IP20/TWPJ

• Adhesive Tape 3M 9495LE 300MP

• Package Inner box: 25rolls 125m 34*20*22cm; 2.6kg

  Outer box: 4 inner boxes 500m 42*35*46cm/11.5kg

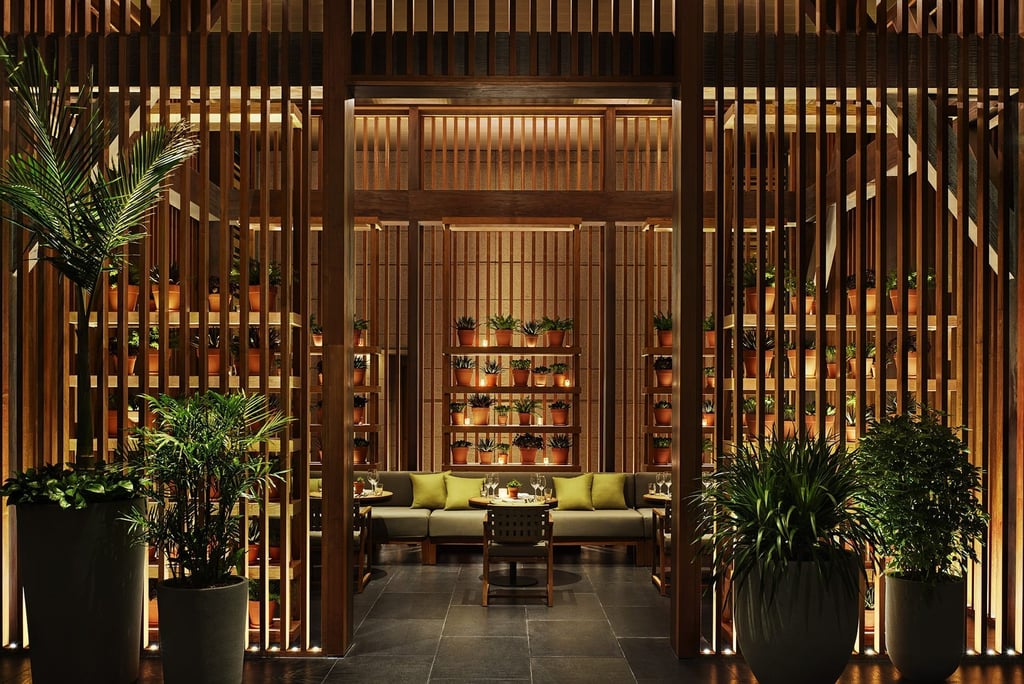

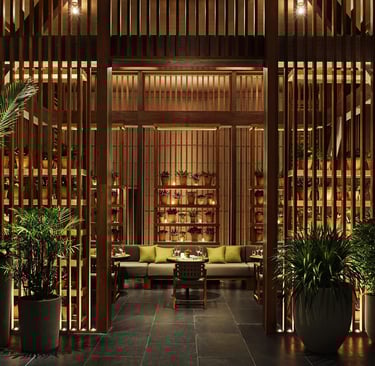

COB LED Strip Application
